| Model |

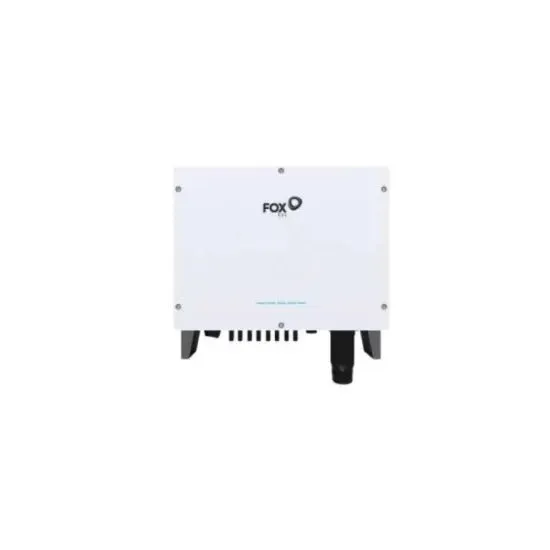

H3-Pro 30.0 (Three-Phase On-Grid) |
| Nominal AC Output Power |
30,000 VA (30 kW) |
| Maximum AC Power (5 min) |
33,000 W |
| Maximum Recommended DC Power |
45,000 W |
| Maximum DC Input Voltage |
1000 V |
| MPPT Operating Voltage Range |
280 – 850 V |
| Number of MPPT Trackers |
3 |
| Maximum Input Current (per MPPT) |
26 A |
| Maximum Short-Circuit Current (per MPPT) |
32 A |
| Rated AC Voltage |
400 V (3 Phase + N + PE) |
| Rated Frequency |
50 / 60 Hz |
| Maximum Efficiency |
98.6 % |
| European Efficiency |
98.2 % |
| Protection Rating |
IP65 |
| Communication Interfaces |
RS485, Wi-Fi / Ethernet (optional) |
| Cooling Method |
Smart temperature-controlled fan |
| Operating Temperature Range |
−25 °C to +60 °C |
| Dimensions (W × H × D) |
670 × 580 × 270 mm |
| Weight |
43 kg |
| Installation Type |
Wall-mounted |
| Parallel Installation Capability |
Up to 10 units in parallel |
| Warranty |
10 years (standard, extendable) |
