| Model / Series |

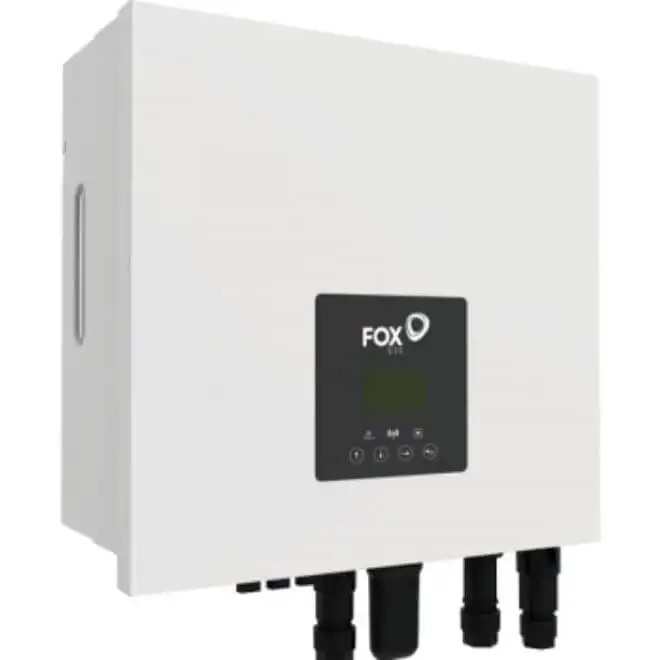

H1-5.0 (Single-phase hybrid inverter) |
| PV (DC) Input |
|
| Max. PV Input Power |
7,500 W |
| Max. PV Input Voltage |
600 V |
| MPPT Operating Voltage Range |
80 V – 550 V |
| Start-up Voltage |
75 V |
| Max. Input Current |
13.5 A per MPPT |
| Short-Circuit Current |
15 A per MPPT |
| Number of MPPTs |
2 |
| Strings per MPPT |
1 per MPPT |
| Battery / Storage |
|
| Supported Battery Type |
Lithium (LiFePO₄ / LFP) |
| Battery Voltage Range |
85 V – 450 V |
| Max. Charge / Discharge Current |
40 A |
| Communication Interface |
CAN, RS485 |
| AC / Output |
|
| Rated Output Power |
5,000 W |
| Max. Apparent Output Power |
6,000 VA |
| Rated Output Current |
21.7 A |
| Grid Voltage / Frequency |
230 V, 50 / 60 Hz |
| Power Factor |
1 (adjustable 0.8 leading – 0.8 lagging) |
| THDi |
< 3 % |
| EPS / Backup |
|
| Max. EPS Power |
6,000 VA |
| Peak EPS Power (60 s) |
7,200 VA |
| EPS Voltage / Frequency |
230 V, 50 / 60 Hz |
| Transfer Time |
< 20 ms |
| Efficiency & Protection |
|
| Max. Efficiency |
97.08 % |
| European Efficiency |
97.00 % |
| PV to Battery Efficiency |
98.5 % |
| Battery to AC Efficiency |
97.0 % |
| Protection Features |
DC reverse polarity, anti-islanding, AC overvoltage, short circuit, insulation & residual current monitoring |
| DC Switch |
Integrated |
| SPD Type |
DC Type II / AC Type III |
| General / Mechanical |
|
| Dimensions (W×H×D) |
434 × 418 × 185 mm |
| Weight |
22 kg |
| Installation |
Wall-mounted, indoor/outdoor |
| Cooling |
Natural convection (fanless) |
| Operating Temp Range |
–25 °C to +60 °C |
| Max. Altitude |
2,000 m |
| Noise Level |
< 35 dB |
| Enclosure Rating |
IP65 |
