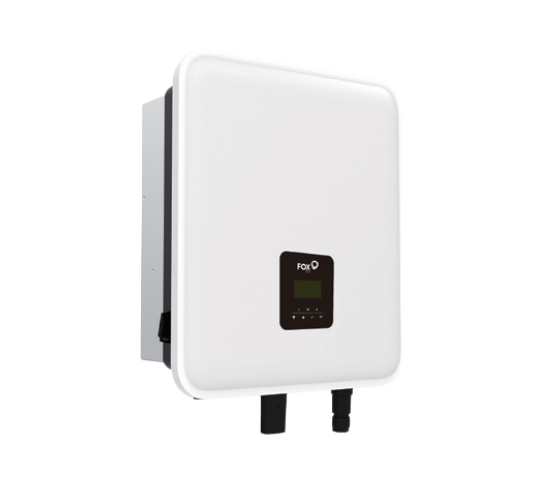

Fox ESS — 7 kW Single-Phase Inverter Specifications
| Specification | Value |
|---|---|
| Model | KH7 (K-Series) |
| Rated AC Power (nominal) | 7,000 W |
| Max AC Power (5 min) | 7,000 W |
| Surge AC Power (1 s) | 7,700 W |
| Max DC Input Power | 10,500 W |
| Max DC Voltage | 600 V |
| MPPT Voltage Range | 80 – 500 V |
| DC Start / Shutdown Voltage | 75 V |
| Number of MPPTs | 3 |
| Max DC Input Current | 48 A |
| Battery Voltage Range | 85 – 480 V |
| Max Battery Charge / Discharge Current | 50 A |
| Max Efficiency | 97.8% |
| Euro Efficiency | 97.4% |
| Protection Rating | IP65 |
| Dimensions (W×H×D) | 450 × 527 × 208 mm |
| Weight | 29 kg |
