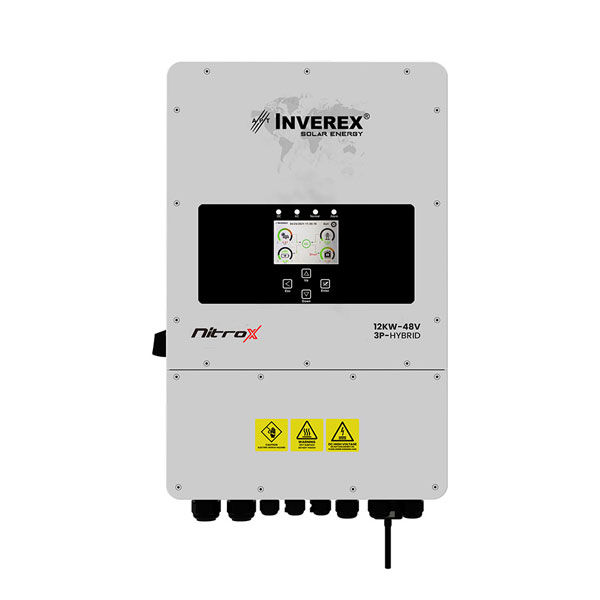

Inverex Nitrox 12KW – 48V (Three Phase)
Technical Data Sheet
| Rated Power: 12,000W | Battery Voltage: 48V DC |
| Inverter Type: Hybrid (Solar + Grid + Battery) | MPPT Tracker: Dual MPPT |
| PV Input Voltage (Max): 500V DC | PV Input Current: 27A per MPPT |
| PV String Configuration: 2 Strings | MPPT Voltage Range: 120–450V DC |
| AC Output Phase: Three Phase | Output Voltage: 380/400V |
| Output Frequency: 50/60Hz | Efficiency: Up to 97% |
| Surge Power: 24,000W | Switching Technology: High-frequency transformerless |
| Communication Ports: RS485 / WiFi (optional) | Protection: Overload, Over-temp, Short circuit |
| Operating Temperature: -10°C to 50°C | Cooling: Smart fan cooling |
| Display: LCD + App Monitoring | Warranty: 1–2 years (depending on supplier) |
