| Feature | Specification |
|---|---|
| Model | Inverex Nitrox 12kW 48V Hybrid |
| System Type | 3-Phase, Hybrid |
| Rated Power | 12,000 W |
| Battery Voltage | 48V |
| PV Input Type | Dual MPPT |
| Max PV Array Power | ~16,000 W (varies by version) |
| Max PV Voltage | 500–550 V DC (typical Nitrox series range) |
| MPPT Voltage Range | 120–450 V DC |
| Max PV Input Current | ~26A × 2 |
| AC Output Type | Dual Output (Critical + Non-Critical) |
| Phase Support | 3-Phase 380/400V |
| Protection Level | IP65 (Dust & Water-resistant) |
| Waveform | Pure Sine Wave |
| Switching Time | <10 ms |
| Battery Support | Lithium / AGM / GEL / Lead-Acid |
| Communication | Wi-Fi / RS485 / GPRS Compatible |
| Monitoring | Mobile App + Web Portal |
| Cooling | Intelligent Fan Cooling |
| Operating Temperature | -10°C to 55°C |

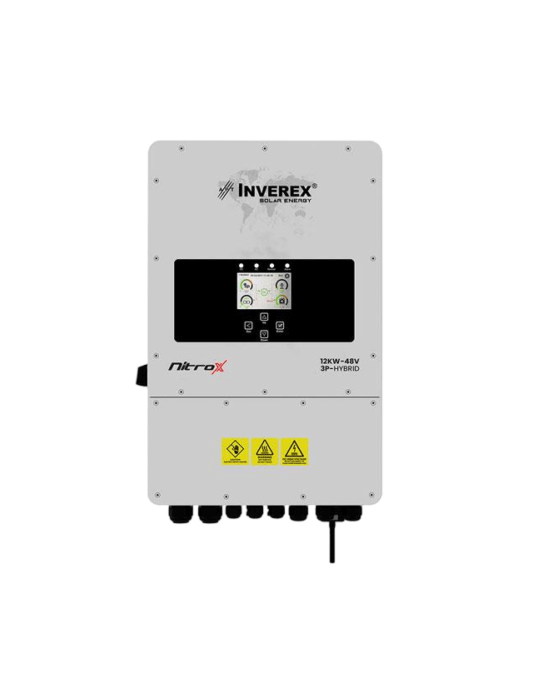

Inverex Nitrox 12 KW 48V 3 Phase, Dual Output, IP 65, Hybrid Inverter
The Inverex Nitrox 12kW 48V Hybrid Inverter is a 3-phase, high-performance inverter designed for homes and commercial setups needing both solar + battery backup. It supports dual AC output, allowing separate backup and non-backup load management. With IP65 protection, it is fully weather-resistant for indoor and outdoor installations. The inverter features advanced MPPT technology, pure sine wave output, and seamless switching during power failures. It offers smart monitoring through Wi-Fi/GPRS and supports Lithium, Gel, AGM, and Dry batteries.
