| Model / Series |

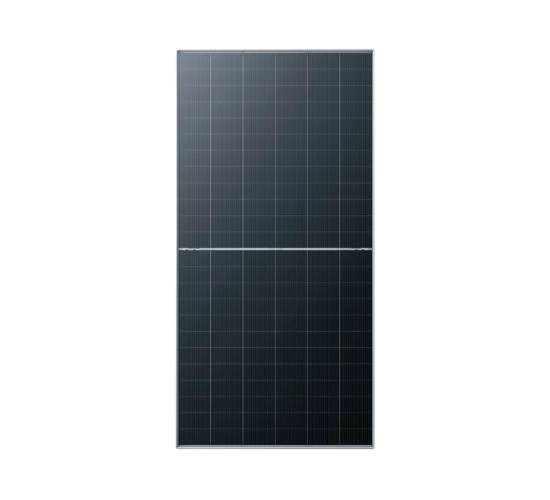

JKM585N-72HL4-BDV (Tiger Neo N-type, bifacial, dual glass) |
| Maximum Power (Pmax, STC) |
585 W |
| Voltage at Maximum Power (Vmp) |
44.02 V |
| Current at Maximum Power (Imp) |
13.29 A |
| Open-Circuit Voltage (Voc) |
52.70 V |
| Short-Circuit Current (Isc) |
14.01 A |
| Module Efficiency (STC) |
22.65 % |
| Cell Type / Configuration |
N-type TOPCon, 144 half-cells (6 × 24) |
| Power Tolerance |
0 ~ +3 % |
| Temperature Coefficient (Pmax) |
–0.29 % / °C |
| Temperature Coefficient (Voc) |
–0.25 % / °C |
| Operating Temperature Range |
–40 °C to +85 °C |
| Maximum System Voltage |
1500 V DC |
| Maximum Series Fuse Rating |
30 A |
| Module Dimensions (L × W × H) |
2278 × 1134 × 35 mm |
| Weight |
31.0 kg |
| Front Load (Snow) |
5400 Pa |
| Rear Load (Wind) |
2400 Pa |
| Glass Type |
Dual glass, 2.0 mm each side |
| Junction Box Protection |
IP68 |
| Connectors |
MC4-EVO2 compatible |
| Cable Cross Section / Length |
4 mm² / 1400 mm (±) |
| Bifacial Factor |
Up to 85 % |
| Product Warranty |
12 years |
| Performance Warranty |
30 years (87.4 % of initial power output at year 30) |
| Annual Degradation Rate |
0.40 % per year |
