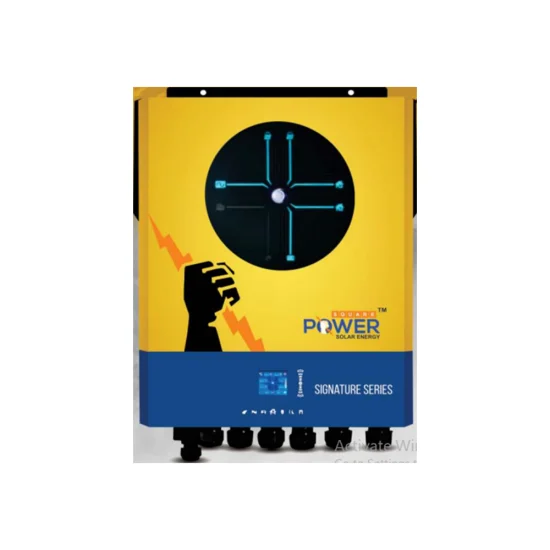

Power Square Hybrid Inverter PV10000

Parameter	Specification
Rated Power	8 000 VA / 8 000 W
Surge Power	16 000 VA
Output Voltage (Battery Mode)	230 VAC ± 5%
Output Waveform	Pure Sine Wave
Input/Output Configuration	Single Phase
Parallel Capability	Yes — up to 6 units
Battery Voltage	48 V DC
Floating Charge Voltage	54 V DC
Over-charge Protection Voltage	63 V DC
Solar Charger Type	MPPT (Maximum Power Point Tracking)
Max. PV Array Power	10 000 W (5 000 W × 2)
MPPT Voltage Operating Range	90 – 450 V DC
Max. PV Array Open-Circuit Voltage	500 V DC
Max. PV Input Current	27 A × 2 (max 40 A)
Max. Solar Charge Current	150 A
Max. AC Charge Current	120 A
Max. Total Charge Current	150 A
Transfer Time	10 ms (PCs) / 20 ms (home appliances)
Efficiency (Peak)	93%
Dimension (D × W × H)	145 × 438 × 553.6 mm
Net Weight	18.4 kg
Communication Interfaces	USB, RS-232, RS-485, WiFi, Dry Contact, BTS
Operating Temperature	-10 °C – 50 °C
Storage Temperature	-15 °C – 60 °C
Relative Humidity	5% – 95% (non-condensing)
