| Model Name |

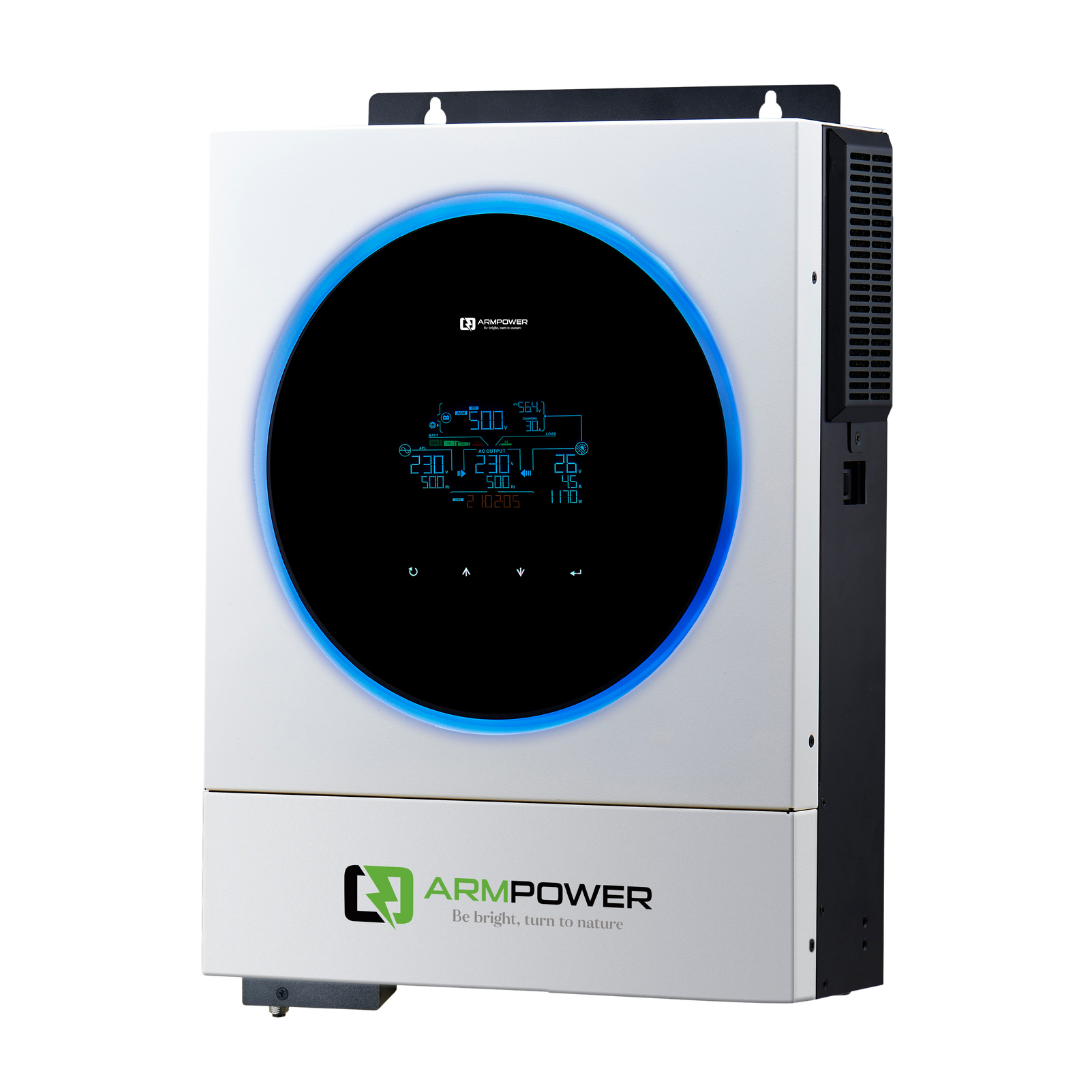

PV 5000 Hybrid Inverter |
| Rated Output Power |
5000 W (5 kW) |
| Output Voltage Range |
230 VAC ± 5% (Single Phase) |
| AC Input Voltage Range |
170–280 VAC (PC Mode) / 90–280 VAC (Appliance Mode) |
| AC Input Frequency |
50 Hz / 60 Hz (Auto Sensing) |
| Output Waveform |
Pure Sine Wave |
| DC System Voltage |
24 VDC or 48 VDC (Model Dependent) |
| Maximum PV Input Power |
5000 W |
| Maximum PV Open Circuit Voltage (Voc) |
500 VDC |
| MPPT Voltage Range |
60 – 450 VDC |
| Number of MPPT Trackers |
1 MPPT (Dual Input Optional) |
| Maximum Solar Charging Current |
120 A (Configurable) |
| Maximum AC Charging Current |
60 A |
| Combined Charging Current (AC + PV) |
Up to 180 A |
| Battery Type Compatibility |
Lead-Acid / Lithium-Ion / Gel / AGM |
| Battery Charging Algorithm |
3-Stage (Bulk / Absorption / Float) |
| Transfer Time |
≤ 10 ms (UPS Mode), ≤ 20 ms (Appliance Mode) |
| Efficiency (Inverter Mode) |
93 – 95% |
| Solar Charge Controller Type |
MPPT (Maximum Power Point Tracking) |
| Communication Interface |
RS-232 / USB / Wi-Fi (optional GPRS module) |
| Display Type |
LCD + LED indicators (System status / Fault / Charging) |
| Protection Features |
Overload / Short Circuit / Reverse Polarity / Over-temperature / Battery Low / Input Surge |
| Cooling System |
Intelligent Fan Cooling with Temperature Control |
| Audible Noise Level |
< 55 dB at 1 meter |
| Operating Temperature Range |
−10 °C to +50 °C |
| Humidity Range |
0 – 90% RH (Non-Condensing) |
| Storage Temperature |
−15 °C to +60 °C |
| Enclosure Rating |
IP 20 (Indoor Use) |
| Dimensions (W × H × D) |
Approx. 120 mm × 320 mm × 400 mm |
| Net Weight |
Approx. 10 – 12 kg |
| Mounting Type |
Wall-Mounted |
| Compliance Standards |
CE / IEC / ISO 9001 Certified Manufacturing |
| Typical Applications |
Home / Office / Shops / Small Commercial Systems |
| Warranty |
2 – 3 Years (Depending on Supplier) |
