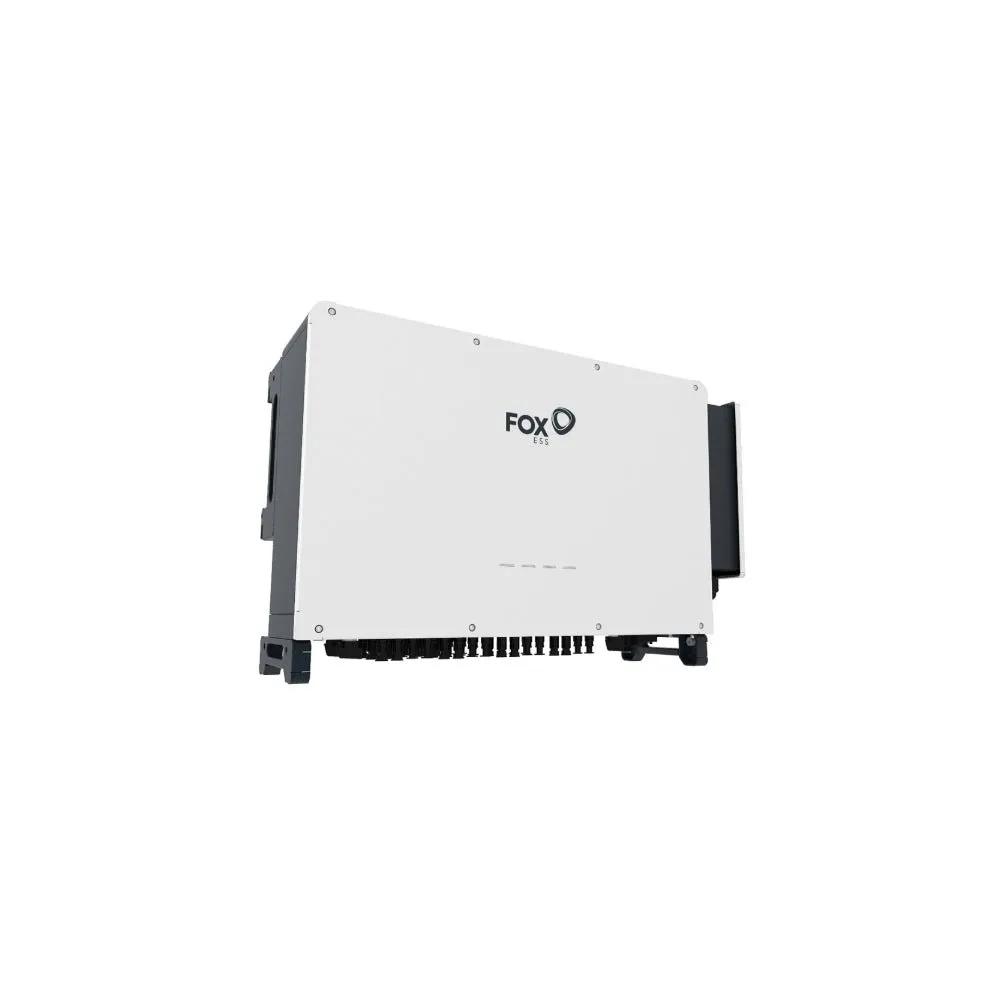

R SERIES (G2) – Three-Phase Inverter

Category	Specifications
Model Range	R75-G2 / R80-G2 / R100-G2 / R110-G2 / R125-G2 / R136-G2
Rated Output Power	75 kW – 136 kW
Max. Efficiency	Up to 98.6 %
MPPT Range (Full Load)	550 V – 850 V
Max. Input Voltage	1100 V
No. of MPPTs / Strings	9/2 – 10/2 (model-dependent)
Max. Input Current	40 A – 50 A
AC Output Voltage	400 V (3W+N+PE)
Grid Frequency	45–65 Hz
THDi	< 3 %
Power Factor	0.8 Leading – 0.8 Lagging
Protection Features	DC Switch, Surge Type II, AFCI, PID Recovery, Residual Current Monitoring, Reverse Polarity, Short Circuit & Overcurrent Protection
Cooling Method	Smart Air Cooling
Operating Temperature	-30 °C ~ +60 °C
Ingress Protection	IP66 (Outdoor-rated)
Altitude	≤ 4000 m (>3000 m derating)
Humidity Range	0 ~ 100 % (non-condensing)
Communication Interfaces	RS485, USB, Wi-Fi + LAN, 4G (optional Bluetooth app support)
Display	LED / Wi-Fi + APP
Dimensions (W×H×D)	975 × 630 × 360 mm
Weight	~ 90 kg
Certifications	IEC 62109, IEC 61727, IEC 62116, EN 50549, IEC 61000-6-3
