| Specification | Details |
|---|---|

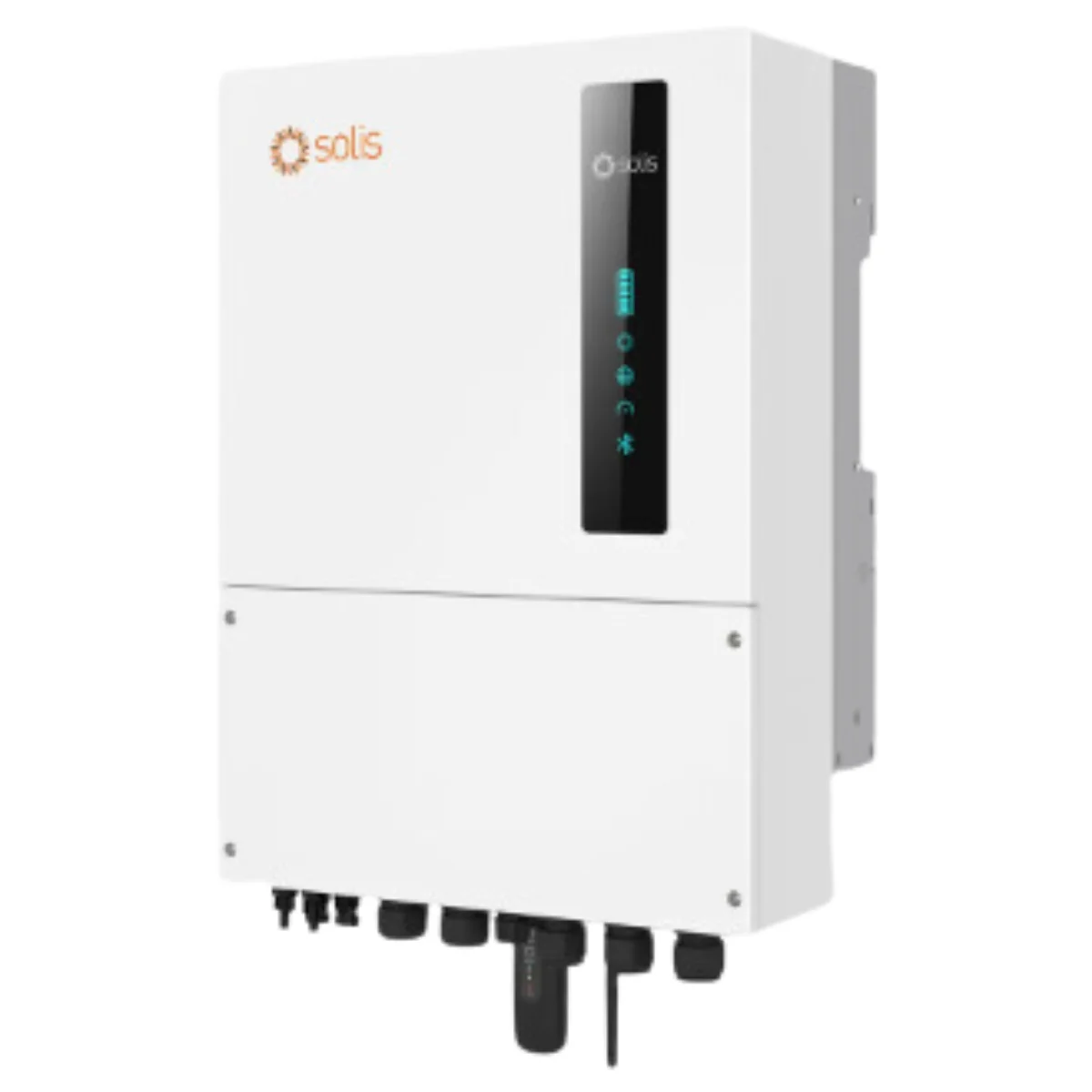

| Model | Solis 6 kW Hybrid Inverter |
| Type | Hybrid Solar Inverter (Solar + Battery + Grid) |
| Rated Power | 6,000 W |
| Phase | Single‑Phase (1/N/PE) |
| Protection Rating | IP66 (dust & water resistant) |
| Installation | Indoor / Outdoor |
| Display | LCD (with Bluetooth/Wi‑Fi monitoring) |
2. AC Output
| Specification | Details |
|---|---|
| Rated AC Power | 6 kW |
| Max Apparent Output | ~2× rated power for short surge (≈10 s) |
| Rated Voltage | 220–230 V |
| Frequency | 50/60 Hz |
| Output Current | ~26–27 A |
| THD (Voltage Distortion) | < 2 % |
| Backup Switch Time | < 4 ms (UPS‑level) |
3. PV (DC) Input
| Specification | Details |
|---|---|
| Max PV Array Power | Up to ~9.6 kW usable (higher PV recommended) |
| MPPT Trackers | 2 MPPTs |
| MPPT Voltage Range | ~90 – 435 V (wide range) |
| Startup Voltage | ~90 V |
| Max DC Power | ~12 kW array (system recommendation) |
| Max Input Voltage | ~600 V (varies by variant) |
4. Battery / Hybrid Features
| Specification | Details |
|---|---|
| Battery Type Supported | Lithium & Lead‑Acid (LV systems) |
| Battery Voltage Range | ~40 – 60 V (typical LV) |
| Max Charge/Discharge Current | ~135 A nominal |
| Max Charge/Discharge Power | ~6 kW |
| Battery Control Features | 6 configurable charge/discharge settings, peak shaving, generator auto/start stop |
5. Efficiency
| Specification | Details |
|---|---|
| Max Efficiency | ~96.2 % |
| EU Efficiency | ~96.1 % |
| PV‑to‑Battery / AC Conversion Efficiencies | > 93 % (varies) |
6. Protection & Safety
| Feature | Included |
|---|---|
| DC Reverse Polarity Protection | Yes |
| Ground Fault Monitoring | Yes |
| Surge / Overvoltage Protection | Built‑in |
| AFCI (Arc‑Fault Protection) | Optional / Supported |
| Battery Protection | Yes (multiple levels) |
7. Environmental & Physical
| Specification | Details |
|---|---|
| Operating Temperature | –40 °C to +60 °C |
| Cooling | Natural convection / smart fan cooling |
| Dimensions (Approx.) | ~335 × 560 × 253 mm |
| Weight (Approx.) | ~23.5–24 kg |
8. Communication & Monitoring
-
Monitoring Interfaces: RS485, CAN
-
Optional: Wi‑Fi, Bluetooth, LAN/GPRS for app/cloud monitoring
-
Display: LCD interface for status and control
9. Parallel & System Scaling
-
Parallel Capability: Supports multiple inverter units in parallel (up to ~36 kW total) for larger installations
-
Generator Integration: Automatic generator control supported
10. Typical Applications
-
Residential & small commercial solar + storage systems
-
Backup power + solar self‑consumption
-
Hybrid systems with grid, battery, and generator integration
